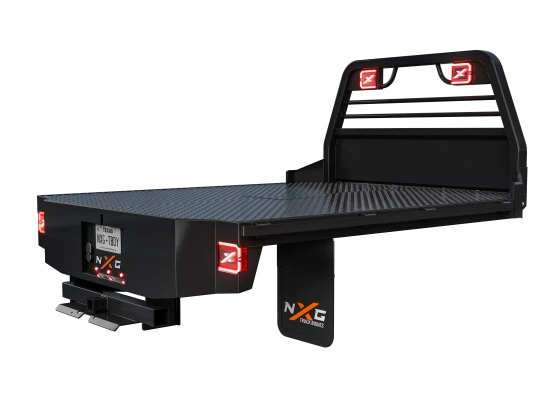

NXG XFD Flatbed Truck Body
The XFD from NXG Truck Bodies is a commercial-duty flatbed built for nonstop work. It features a fully integrated frame, advanced lighting, and industry-leading towing capacity—engineered for fleets, contractors, and heavy-use applications.
Installed locally by 3W Truck Beds.
Available Bed Lengths
- 84”
- 86”
- 94”
- 114”
Frame & Structural Design
- 4” structural steel frame rails
- Precision-cut channel steel runners
- 3” roll-formed steel crossmembers
- Designed for maximum load capacity and long-term durability
XDeck (Standard)
- Fully recessed 11-gauge steel treadplate deck
- Eliminates exposed edges
- Maximizes usable deck space
- Improves corrosion resistance and wear protection
XRack – Integrated Headache Rack (Standard)
- Fully welded and built into the body
- 3” × 4” steel tubing with mandrel bends
- Integrated XLights
- Designed for strength, cab protection, and long-term reliability
XLights – Integrated Lighting System (Standard)
- Automotive-grade taillights
- Stop, tail, turn, and backup functions
- Built-in amber strobe for job-site visibility
- Lifetime warranty
XHitch – Integrated Towing System (Standard)
- 30,000 lb gooseneck rating
- 24,500 lb receiver hitch rating
- Frame-integrated design
- Upright safety chain keepers
- Pre-wired electrical connections
- Emergency breakaway loop
No towing upgrades required.
Side Rails & Tie-Downs
- 3/8” × 2” formed steel rub rails
- Integrated stake pockets
- Compatible with standard tie-downs
Fuel Fill Design
- Angled fill neck
- Rear-facing design on cab & chassis bodies
- Easier fueling with reduced splashback
Electrical & Trailer Connections
- Automotive-grade 7-way and 4-way trailer plugs
- Reliable 12-volt connections for trailers and equipment
XCoat Protective Finish
- Proprietary multi-stage cleaning and powder coating process
- Industry-leading corrosion resistance
- Built for harsh environments and long service life
Standard Features at a Glance
- Fully welded XRack headache rack
- Recessed steel XDeck
- Integrated XLights with amber strobe
- XHitch towing system
- Structural steel frame rails
- Stake-pocket side rails
- XCoat corrosion-resistant finish
Installation by 3W Truck Beds
- Professional installation
- Proper fitment and wiring
- Local service and support
Ready to spec an NXG XFD flatbed?
Call 3W Truck Beds or visit our Teague, Texas location.
